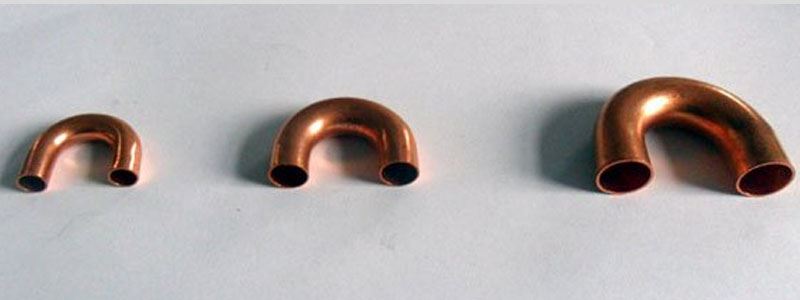

Kaliraj Impex is the one of the leading Copper Condenser U Bend Manufacturer and Supplier in India. We Manufacture and supply a comprehensive range of products, including Copper Condenser U Bend, as the leading stockist of Copper Condenser U Bend in Mumbai. Kaliraj Impex should be contacted to check availability and pricing.
Kaliraj Impex is a privately held company that manufactures Copper Condenser U Bend to national and international standards. In India, you can get Copper Condenser U Bend for a low price. Our Copper Condenser U Bend comes in a number of diameters and can be cut and polished to meet your needs. Kaliraj Impex is a known company for manufacturing and supplying excellent quality products like Copper Condenser U Bend for a wide range of industrial applications include Chemical Industries, Oil & Gas Indutry, etc.
Kaliraj Impex is one of the largest Supplier of Copper Condenser U Bend of various kinds. Copper Condenser U Bend are used in a wide range of sectors and are manufactured with cutting-edge technology and top quality raw materials with cutting-edge qualities. Copper Condenser U Bend come in a variety of thicknesses, specifications, grades, and dimensions.
Copper Condenser U Bend are finished to meet the standards of the client in terms of dimensions and wall thickness, as well as heat treatment for more demanding applications. In general, Copper Condenser U Bend are made in accordance with current API, ASTM, and ASME standards.
Copper Condenser U Bend | Specification |
Standard: | JIS B2313 Fitting, ANSI B16.9 Fitting, ANSI B16.28 Fitting, MSS-SP-43 Type A Fitting, MSS-SP-43 Type B Fitting, JIS B2312 Fitting, MSS-SP-43 Type b Fitting |
Dimensions Class: | 2000#, 3000#, 6000#, 9000# |
Application: | Chemical Industry Water Pipeline Industry Nuclear Power Plant Natural Gas Industry Fabrication Industry Oil And Gas Industry |
Rating Pressure: | Pressure Rating Of: 3000 LBS, 6000 LBS, 9000 LBS |
Check Sizes: | (SMLS UPTO 24”) 1/2” TO 36” (Buttweld 8” TO 36” ) |
Thickness: | View Our Thickness: Schedule 5S, SCH10, SCH20, SCH10, SCH20, SCH30, SCHTD, SCH40, SCH60, XS, SCH80, SCH100, SCH120, SCH140, SCH160. |
Fitting Machining Equipment: | Electric bevelling machine, Press machine, Bending machine, Pushing Machine, Sand-blasting machine etc |
The Copper Condenser U Bend is best because it can withstand higher pressures and temperatures than the other types of condensers. It also has a higher heat transfer coefficient which means that it can cool more quickly and efficiently.
Element | Copper | Iron | Phosphorous | Zinc |
Grade | 98.5 min | 0.8-1.2 | 0.01-0.04 | 0.2 |
---|
Copper Condenser U Bend | Yield Strength (0.2%Offset) | Tensile Strength | Elongation | Machinability |
Grade | 69.0 – 345 MPa | 221 – 379 MPa | 45% | 20% |
Pressure Rating (psig) | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
NPS (inch) |
Pipe Sch. | OD (inch) |
Wall Thick. (in) |
Temperature (oF) | ||||||||
Copper 100 Fitting | Copper 200 Fitting | Copper 300 Fitting | Copper 400 Fitting | Copper 500 Fitting | Copper 600 Fitting | |||||||
Allowable Stress (Pressure Rating) | ||||||||||||
16700 | 16700 | 16700 | 15500 | 14400 | 13500 | |||||||
1" | 40 | 1.315 | 0.133 | 2205 | 2205 | 2205 | 2047 | 1902 | 1783 | |||
80 | 1.315 | 0.179 | 3061 | 3061 | 3061 | 2841 | 2640 | 2475 | ||||
160 | 1.315 | 0.250 | 4493 | 4493 | 4493 | 4170 | 3874 | 3632 | ||||
1 1/2" | 40 | 1.900 | 0.145 | 1629 | 1629 | 1629 | 1512 | 1404 | 1317 | |||
80 | 1.900 | 0.200 | 2303 | 2303 | 2303 | 2138 | 1986 | 1862 | ||||
160 | 1.900 | 0.281 | 3362 | 3362 | 3362 | 3120 | 2899 | 2717 | ||||
2" | 40 | 2.375 | 0.154 | 1371 | 1371 | 1371 | 1272 | 1182 | 1108 | |||
80 | 2.375 | 0.218 | 1985 | 1985 | 1985 | 1843 | 1712 | 1605 | ||||
160 | 2.375 | 0.344 | 3283 | 3283 | 3283 | 3047 | 2831 | 2654 | ||||
3" | 40 | 3.500 | 0.216 | 1301 | 1301 | 1301 | 1208 | 1122 | 1052 | |||
80 | 3.500 | 0.300 | 1844 | 1844 | 1844 | 1712 | 1590 | 1491 | ||||
160 | 3.500 | 0.438 | 2787 | 2787 | 2787 | 2587 | 2403 | 2253 | ||||
4" | 40 | 4.500 | 0.237 | 1102 | 1102 | 1102 | 1023 | 950 | 891 | |||
80 | 4.500 | 0.337 | 1596 | 1596 | 1596 | 1482 | 1377 | 1291 | ||||
160 | 4.500 | 0.531 | 2611 | 2611 | 2611 | 2424 | 2552 | 2111 | ||||
5" | 40 | 5.563 | 0.258 | 965 | 965 | 965 | 896 | 832 | 780 | |||
80 | 5.563 | 0.375 | 1428 | 1428 | 1428 | 1325 | 1231 | 1154 | ||||
160 | 5.563 | 0.625 | 2474 | 2474 | 2474 | 2296 | 2133 | 2000 | ||||
6" | 40 | 6.625 | 0.280 | 877 | 877 | 877 | 814 | 756 | 709 | |||
80 | 6.625 | 0.432 | 1379 | 1379 | 1379 | 1280 | 1189 | 1115 | ||||
160 | 6.625 | 0.719 | 2382 | 2382 | 2382 | 2211 | 2054 | 1925 | ||||
8" | 40 | 8.625 | 0.322 | 771 | 771 | 771 | 716 | 665 | 623 | |||
80 | 8.625 | 0.500 | 1218 | 1218 | 1218 | 1131 | 1050 | 985 | ||||
160 | 8.625 | 0.906 | 2298 | 2298 | 2298 | 2133 | 1982 | 1858 | ||||
10" | 40 | 10.750 | 0.365 | 699 | 699 | 699 | 649 | 603 | 565 | |||
80 | 10.750 | 0.594 | 1159 | 1159 | 1159 | 1075 | 999 | 937 | ||||
160 | 10.750 | 1.125 | 2289 | 2289 | 2289 | 2124 | 1974 | 1850 |
Product dependability and performance have created Kaliraj Impex leading Copper Condenser U Bend Manufacturer in Mumbai, India. Every month, we provide and supply various grades of Copper Condenser U Bend to Indian ports in various parts of India, which are then supply to various nations. Due to our commitment to providing high-quality Copper Condenser U Bend at affordable prices with simple services, we have sales representatives in most of India's major cities, including:
