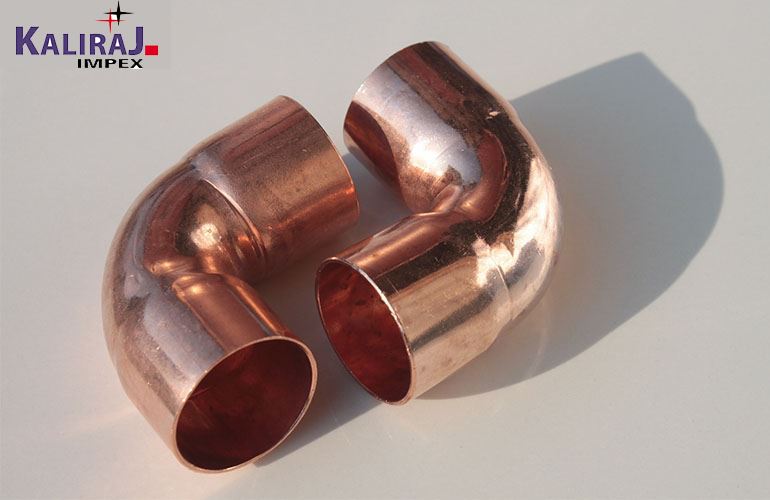

Kaliraj Impex is the one of the leading Copper Elbow Fitting Manufacturer and Supplier in India. We Manufacture and supply a comprehensive range of products, including Copper Elbow Fitting , Copper 45 degree Elbow Fitting and Copper 90 degree Elbow Fitting as the leading stockist of Copper Elbow Fitting in Mumabi. Kaliraj Impex should be contacted to check availability and pricing.
Kaliraj Impex is a privately held company that manufactures Copper Elbow Fitting to national and international standards. In India, you can get Copper Elbow Fitting for a low price. Our Copper Elbow Fitting comes in a number of diameters and can be cut and polished to meet your needs. Kaliraj Impex is a known company for manufacturing and supplying excellent quality products like Copper Elbow Fittings for a wide range of industrial applications include Chemical Industries, Oil & Gas Indutry, etc.
Kaliraj Impex is one of the largest Supplier of Copper Elbow Fitting of various kinds. Copper Elbow Fitting are used in a wide range of sectors and are manufactured with cutting-edge technology and top quality raw materials with cutting-edge qualities. Copper Elbow Fitting come in a variety of thicknesses, specifications, grades, and dimensions.
Copper Elbow Fitting are finished to meet the standards of the client in terms of dimensions and wall thickness, as well as heat treatment for more demanding applications. In general, Copper Elbow Fitting are made in accordance with current API, ASTM, and ASME standards.
Copper Elbow Fitting | Specification |
Standard: | JIS B2313 Fitting, ANSI B16.9 Fitting, ANSI B16.28 Fitting, MSS-SP-43 Type A Fitting, MSS-SP-43 Type B Fitting, JIS B2312 Fitting, MSS-SP-43 Type b Fitting |
Dimensions Class: | 2000#, 3000#, 6000#, 9000# |
Application: | Chemical Industry Water Pipeline Industry Nuclear Power Plant Natural Gas Industry Fabrication Industry Oil And Gas Industry |
Rating Pressure: | Pressure Rating Of: 3000 LBS, 6000 LBS, 9000 LBS |
Check Sizes: | (SMLS UPTO 24”) 1/2” TO 36” (Buttweld 8” TO 36” ) |
Thickness: | View Our Thickness: Schedule 5S, SCH10, SCH20, SCH10, SCH20, SCH30, SCHTD, SCH40, SCH60, XS, SCH80, SCH100, SCH120, SCH140, SCH160. |
Coating Fitting Faces : | Oil Black Paint, Zinc Plated, Cold and Hot Dip Galvanized, Yellow Transparent, Anti-rust Paint |
Fitting Machining Equipment: | Electric bevelling machine, Press machine, Bending machine, Pushing Machine, Sand-blasting machine etc |
The Copper Elbow Fitting is best because it has a lower coefficient of thermal expansion than other metals. This means that when the temperature changes, it will expand and contract less than other metals.
Element | Copper | Iron | Phosphorous | Zinc |
Grade | 98.5 min | 0.8-1.2 | 0.01-0.04 | 0.2 |
---|
Copper Elbow Fitting | Yield Strength (0.2%Offset) | Tensile Strength | Elongation | Machinability |
Grade | 69.0 – 345 MPa | 221 – 379 MPa | 45% | 20% |
Pressure Rating (psig) | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
NPS (inch) |
Pipe Sch. | OD (inch) |
Wall Thick. (in) |
Temperature (oF) | ||||||||
Copper 100 Fitting | Copper 200 Fitting | Copper 300 Fitting | Copper 400 Fitting | Copper 500 Fitting | Copper 600 Fitting | |||||||
Allowable Stress (Pressure Rating) | ||||||||||||
16700 | 16700 | 16700 | 15500 | 14400 | 13500 | |||||||
1" | 40 | 1.315 | 0.133 | 2205 | 2205 | 2205 | 2047 | 1902 | 1783 | |||
80 | 1.315 | 0.179 | 3061 | 3061 | 3061 | 2841 | 2640 | 2475 | ||||
160 | 1.315 | 0.250 | 4493 | 4493 | 4493 | 4170 | 3874 | 3632 | ||||
1 1/2" | 40 | 1.900 | 0.145 | 1629 | 1629 | 1629 | 1512 | 1404 | 1317 | |||
80 | 1.900 | 0.200 | 2303 | 2303 | 2303 | 2138 | 1986 | 1862 | ||||
160 | 1.900 | 0.281 | 3362 | 3362 | 3362 | 3120 | 2899 | 2717 | ||||
2" | 40 | 2.375 | 0.154 | 1371 | 1371 | 1371 | 1272 | 1182 | 1108 | |||
80 | 2.375 | 0.218 | 1985 | 1985 | 1985 | 1843 | 1712 | 1605 | ||||
160 | 2.375 | 0.344 | 3283 | 3283 | 3283 | 3047 | 2831 | 2654 | ||||
3" | 40 | 3.500 | 0.216 | 1301 | 1301 | 1301 | 1208 | 1122 | 1052 | |||
80 | 3.500 | 0.300 | 1844 | 1844 | 1844 | 1712 | 1590 | 1491 | ||||
160 | 3.500 | 0.438 | 2787 | 2787 | 2787 | 2587 | 2403 | 2253 | ||||
4" | 40 | 4.500 | 0.237 | 1102 | 1102 | 1102 | 1023 | 950 | 891 | |||
80 | 4.500 | 0.337 | 1596 | 1596 | 1596 | 1482 | 1377 | 1291 | ||||
160 | 4.500 | 0.531 | 2611 | 2611 | 2611 | 2424 | 2552 | 2111 | ||||
5" | 40 | 5.563 | 0.258 | 965 | 965 | 965 | 896 | 832 | 780 | |||
80 | 5.563 | 0.375 | 1428 | 1428 | 1428 | 1325 | 1231 | 1154 | ||||
160 | 5.563 | 0.625 | 2474 | 2474 | 2474 | 2296 | 2133 | 2000 | ||||
6" | 40 | 6.625 | 0.280 | 877 | 877 | 877 | 814 | 756 | 709 | |||
80 | 6.625 | 0.432 | 1379 | 1379 | 1379 | 1280 | 1189 | 1115 | ||||
160 | 6.625 | 0.719 | 2382 | 2382 | 2382 | 2211 | 2054 | 1925 | ||||
8" | 40 | 8.625 | 0.322 | 771 | 771 | 771 | 716 | 665 | 623 | |||
80 | 8.625 | 0.500 | 1218 | 1218 | 1218 | 1131 | 1050 | 985 | ||||
160 | 8.625 | 0.906 | 2298 | 2298 | 2298 | 2133 | 1982 | 1858 | ||||
10" | 40 | 10.750 | 0.365 | 699 | 699 | 699 | 649 | 603 | 565 | |||
80 | 10.750 | 0.594 | 1159 | 1159 | 1159 | 1075 | 999 | 937 | ||||
160 | 10.750 | 1.125 | 2289 | 2289 | 2289 | 2124 | 1974 | 1850 |
Product dependability and performance have created Kaliraj Impex leading Copper Elbow Fitting Manufacturer in Mumbai, India. Every month, we provide and export various grades of Copper Elbow Fitting to Indian ports in various parts of India, which are then Supplier to various nations. Due to our commitment to providing high-quality Copper Elbow Fitting at affordable prices with simple services, we have sales representatives in most of India's major cities, including:
